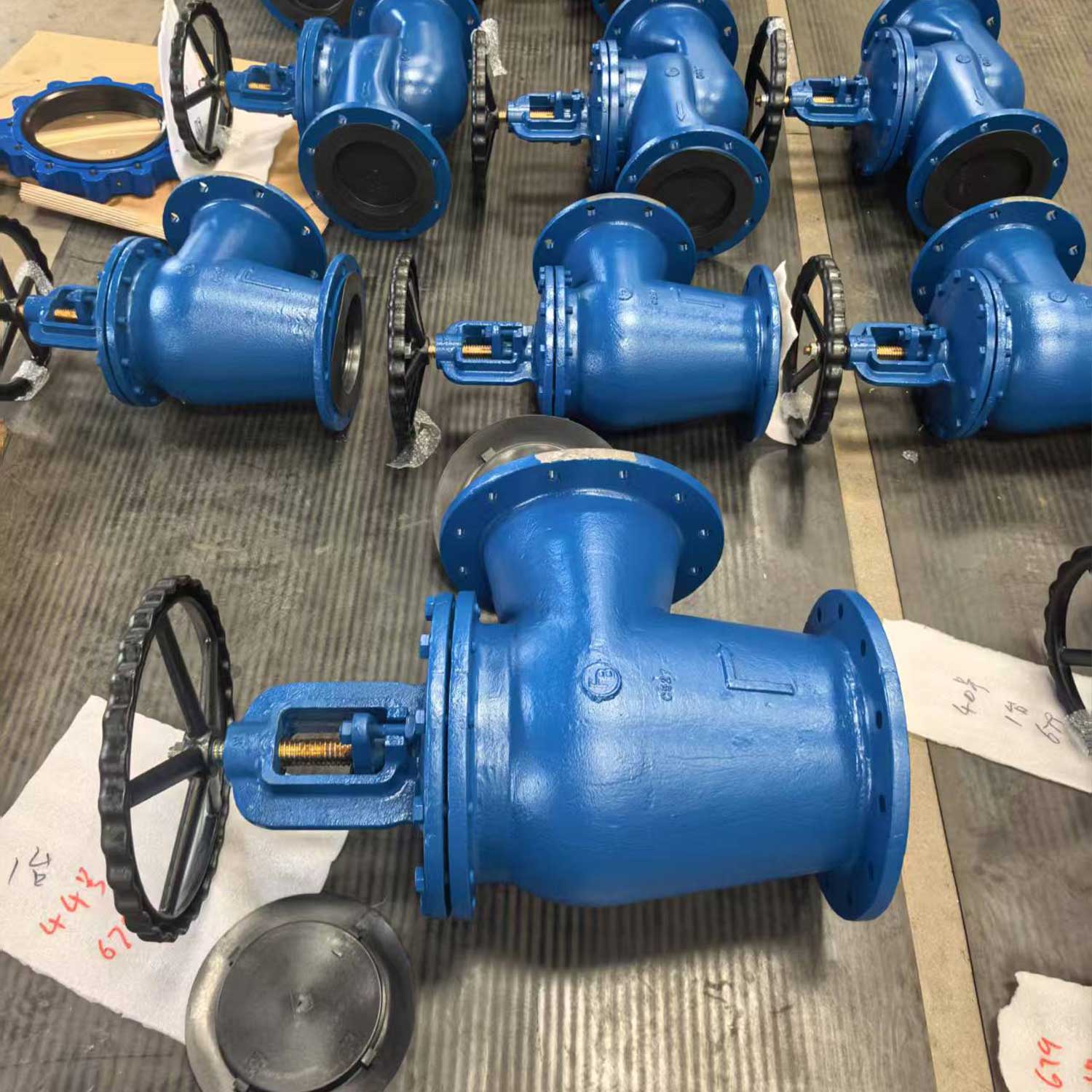

Angle Globe Valves
| Size: | DN15-DN300 |
|---|---|
| Working Pressure: | PN10 PN16 PN25 PN40 |
| Working Temp: | -10℃~230℃ |
| Painting: | Liquid Painting |
| Design Standards: | DIN3356 |
| Face to Face Standard: | EN558-1 Seris 1 |
| Flanges Standard: | EN1092 PN10, PN16, PN25 |
| Tests Standard: | EN12266-1 |
| Body Material: | GGG40, GGG40.3, GGG50, WCB |
| Stem Material: | Bronze, Brass, SS316, SS304 |
| Seat Ring Material: | Bronze, Brass, SS316, SS304 |
| Approvals： | DNV-GL, BV, CCS, LR, ABS, NK,WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
Marine & Offshore & Aqua
Valves provide corrosion-resistant fluid control for marine equipment and aquaculture, ensuring stable medium transmission.
Learn more
Water & Water Treatment
Valves are key equipment in the entire water treatment process, enabling water on-off control, flow regulation, and backflow prevention.
Learn more
industry
Valves are core control components in industrial systems, responsible for fluid regulation, shut-off, and safety protection.
Learn more
