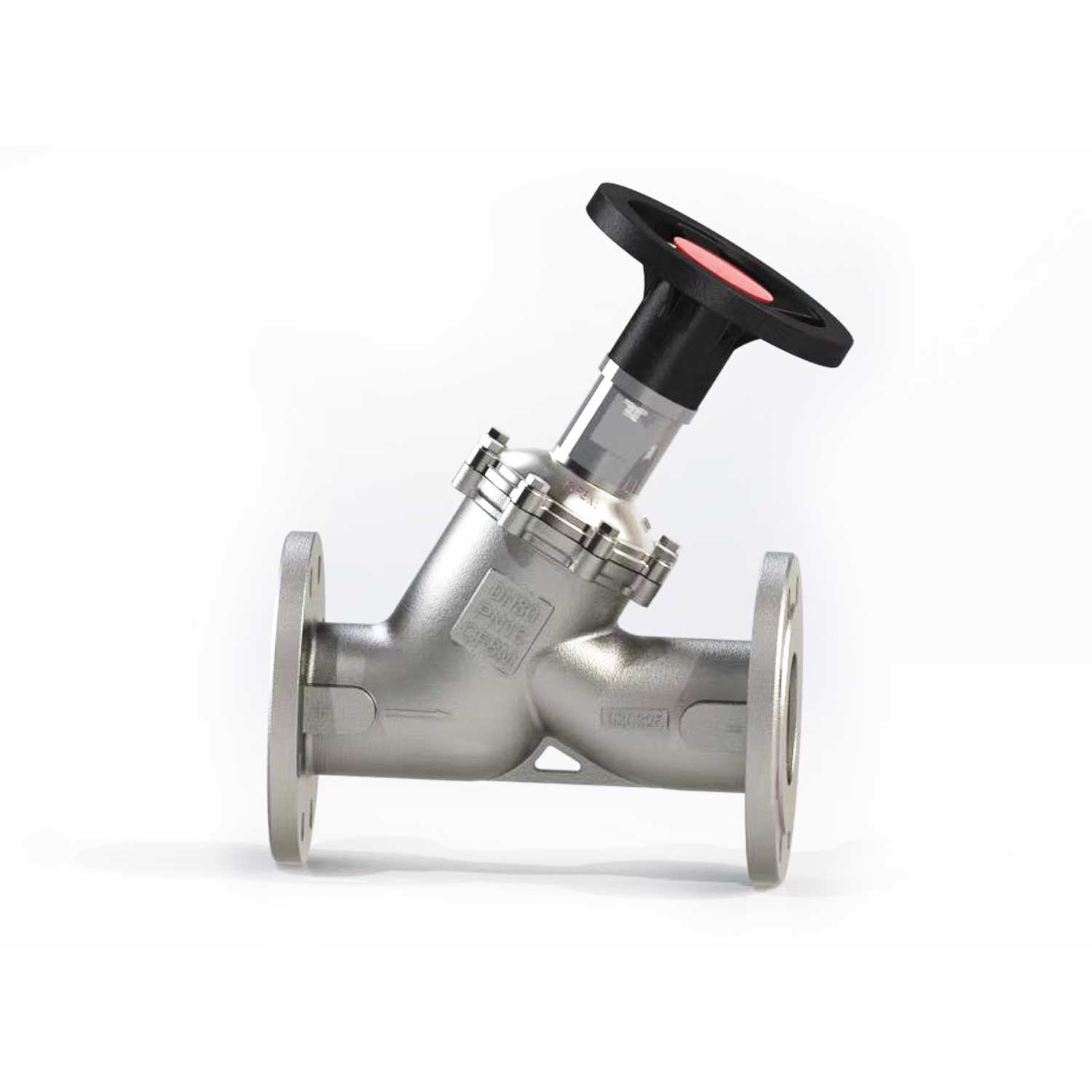

BS7350 PN16 Stainless Steel Balancing Valves
| Size: | DN50-DN300 |
|---|---|
| Foundry Approvals: | ISO901, DNV-GL, BV, LR，CE-PED |
| Design Standards: | BS7350 |
| Face to Face Standard: | EN558-1 |
| Flanges Standard: | EN1092 PN6/PN10/PN16 |
| Tests Standard: | EN12266-1 |
| Body Material: | CF8M |
| Disc Material: | CF8M+EPDM |
| Shaft Material: | 316, 316L, Hastelloy, Duplex, Monel |
| Link Cover: | Balck Plastic ABS |
| Direction Cover: | White Plastic ABS+A3 |
| Hand Wheel: | Aluminium Die Casting |
| Working Pressure: | 16 Bar |
| Woring Temperature: | ’-20℃-120℃ |
| Test Point for Variable | |
| Orifice Double Regulating Valve but not fitted | |
