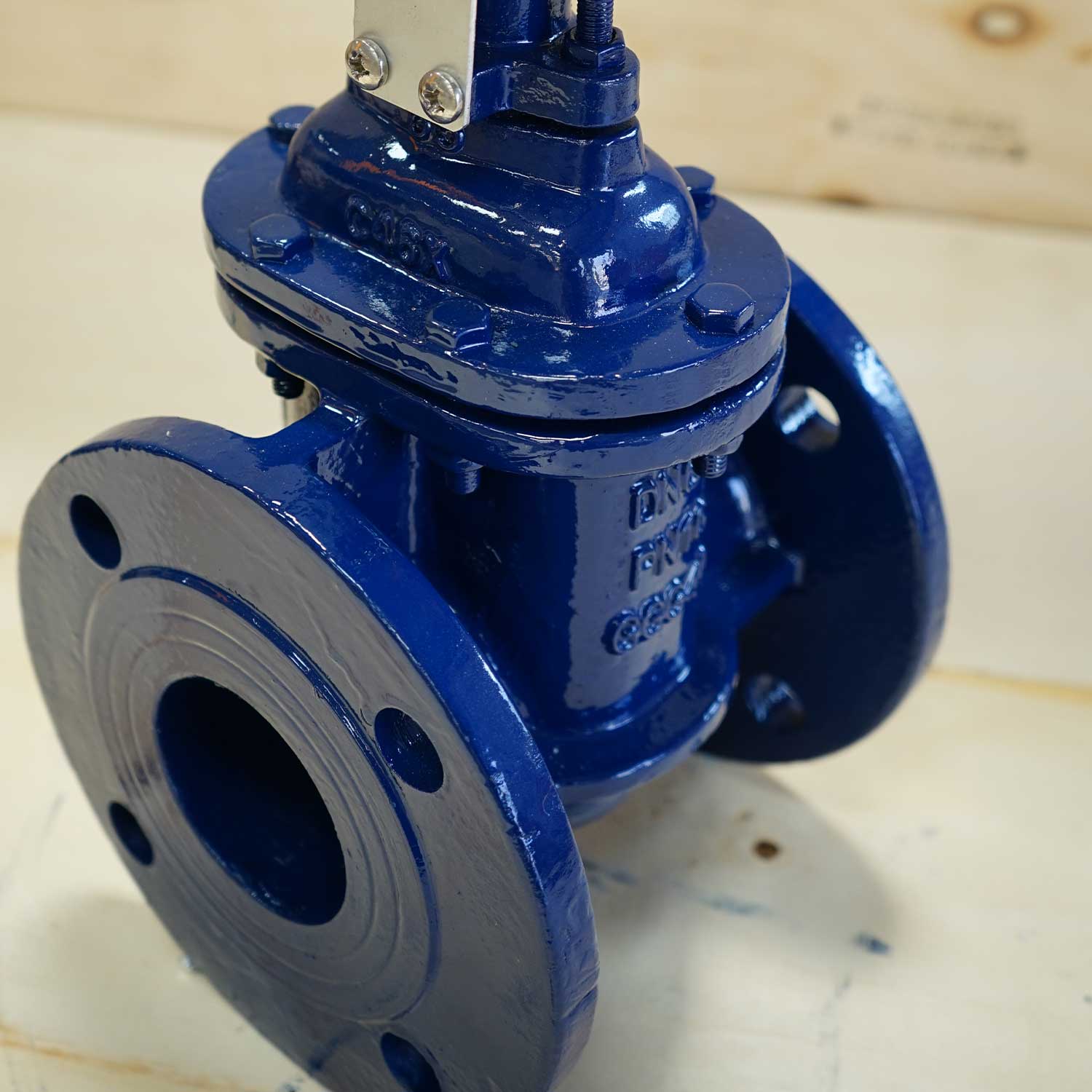

DIN Metal Seated Gate Valves
| Size: | DN50-DN600 |
|---|---|
| Working Pressure: | PN10 PN16 |
| Working Temp: | -10℃~230℃ |
| Painting: | Liquid Painting |
| Design Standards: | EN1171 |
| Face to Face Standard: | EN558-1 Seris 14 |
| Flanges Standard: | EN1092 PN10, PN16 |
| Tests Standard: | EN12266-1 |
| Body Material: | GGG40, GGG40.3,GGG50 |
| Stem Material: | Bronze, Brass, SS316, SS304 |
| Seat Ring Material: | Bronze, Brass, SS316, SS304 |
| Approvals： | DNV-GL, BV, CCS, LR, ABS, NK,WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
