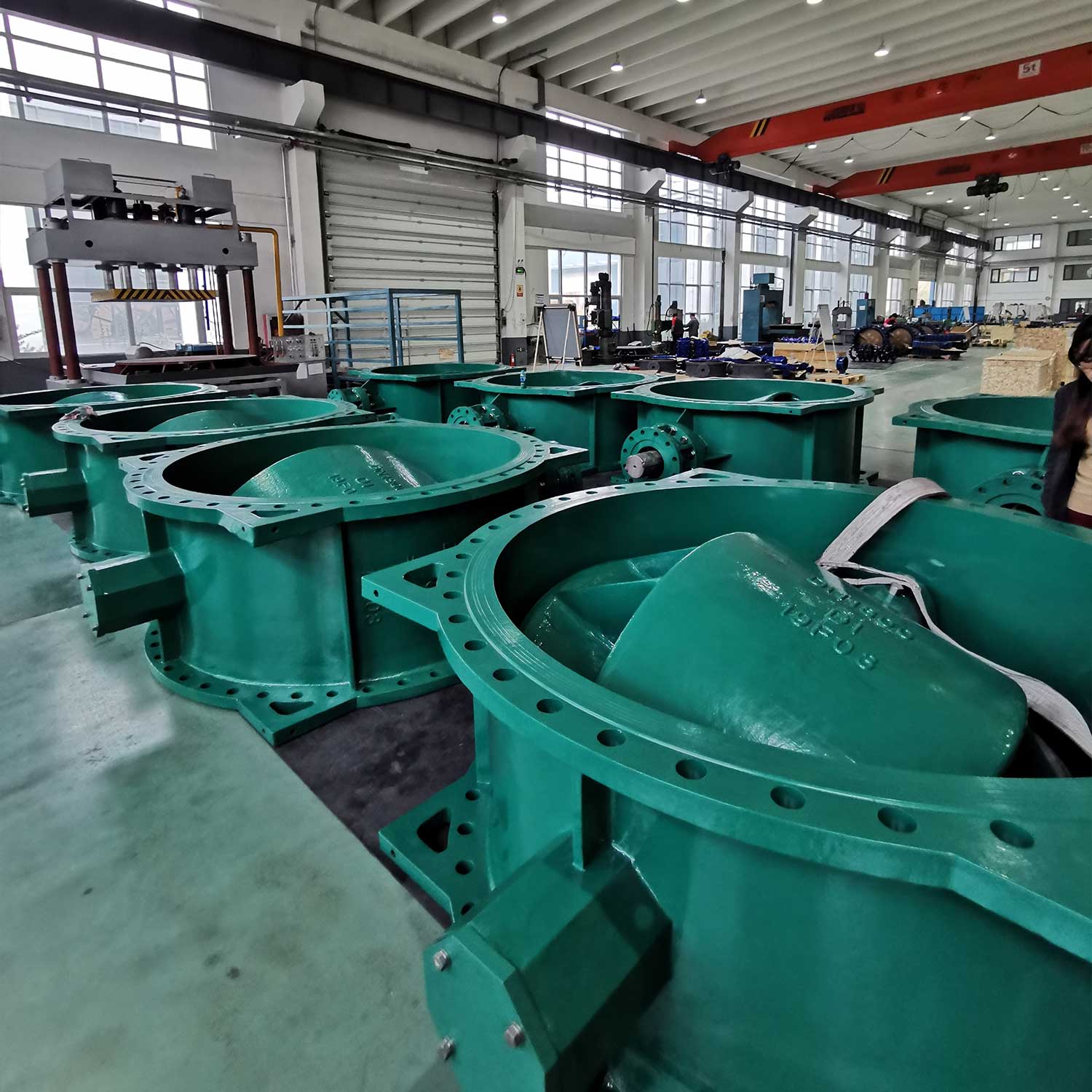

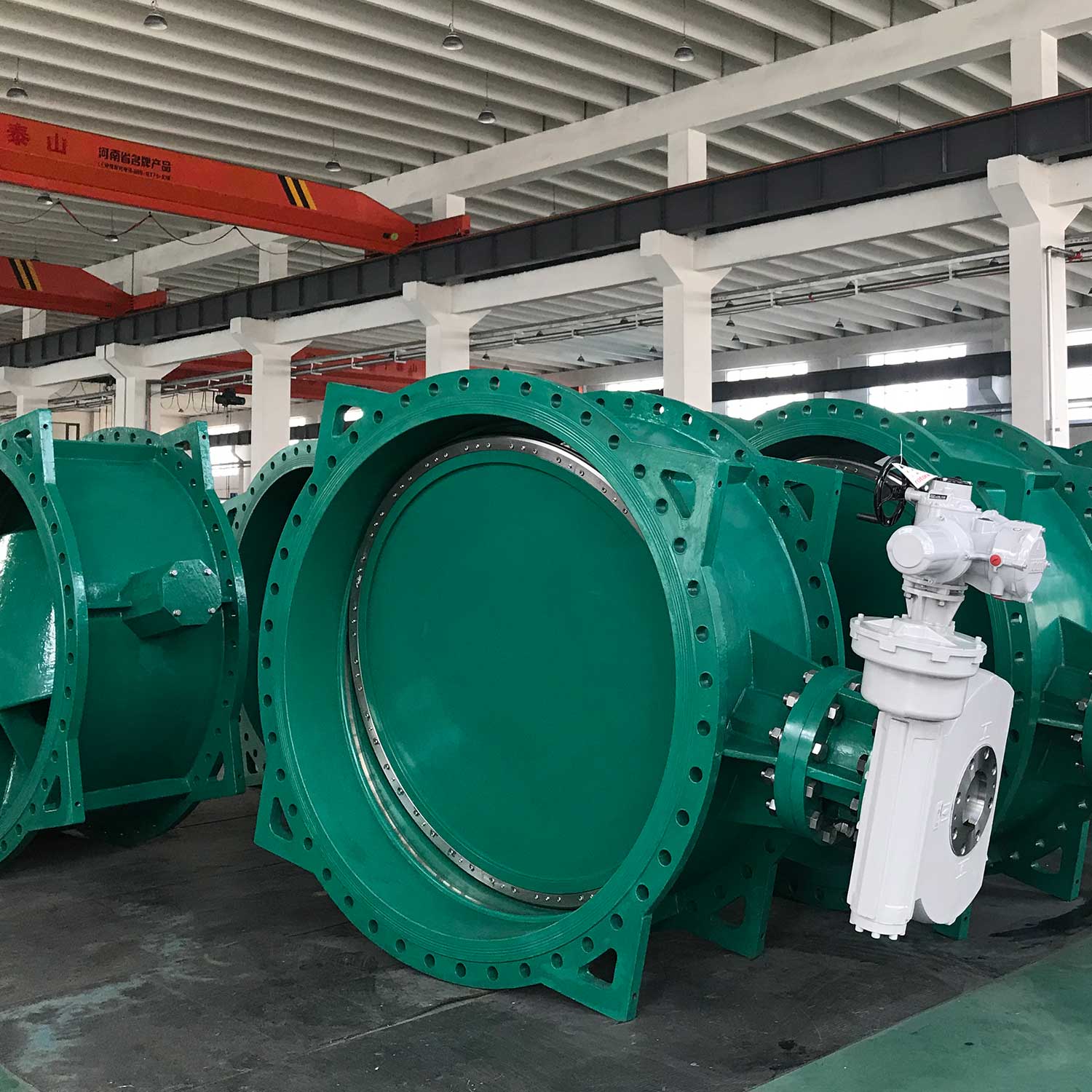

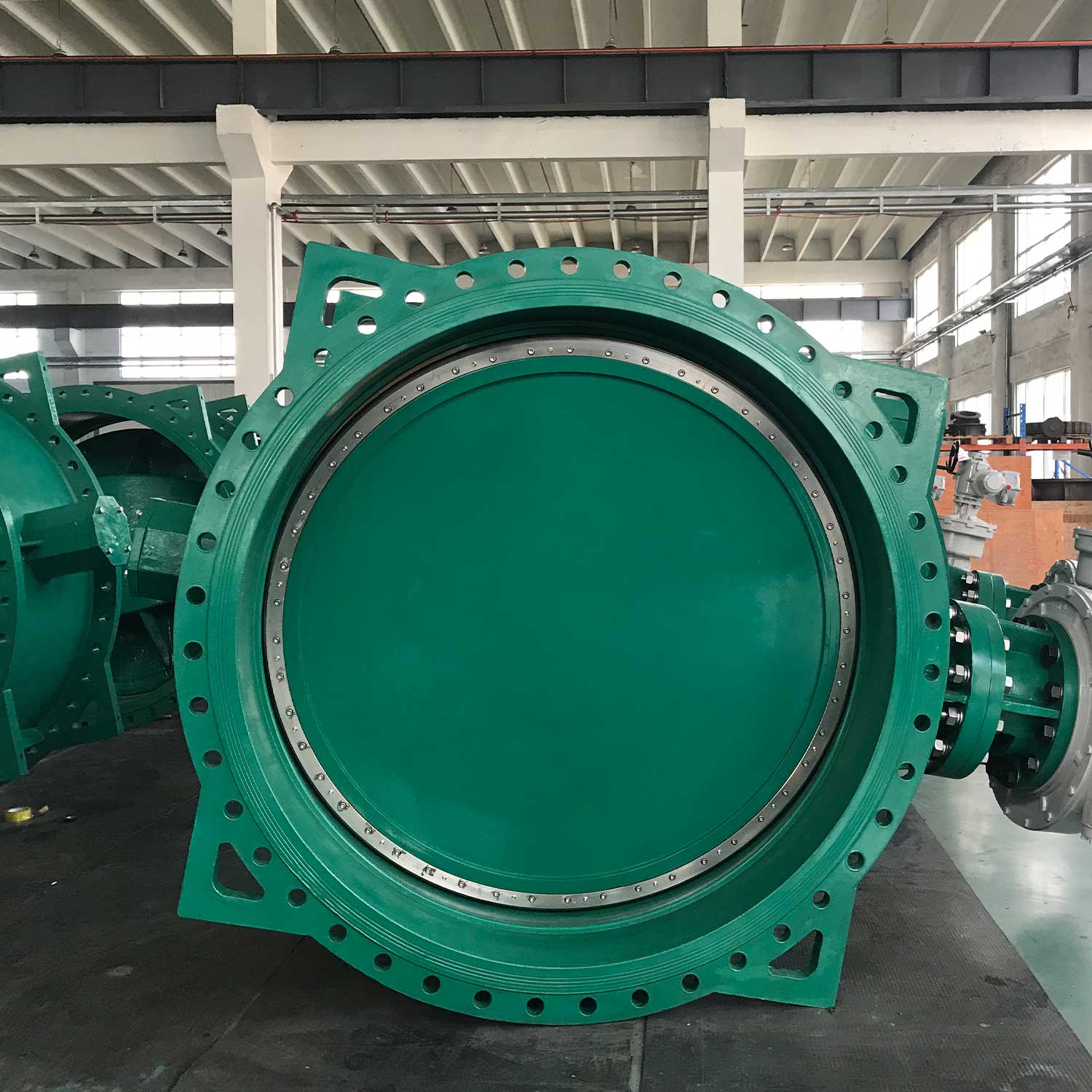

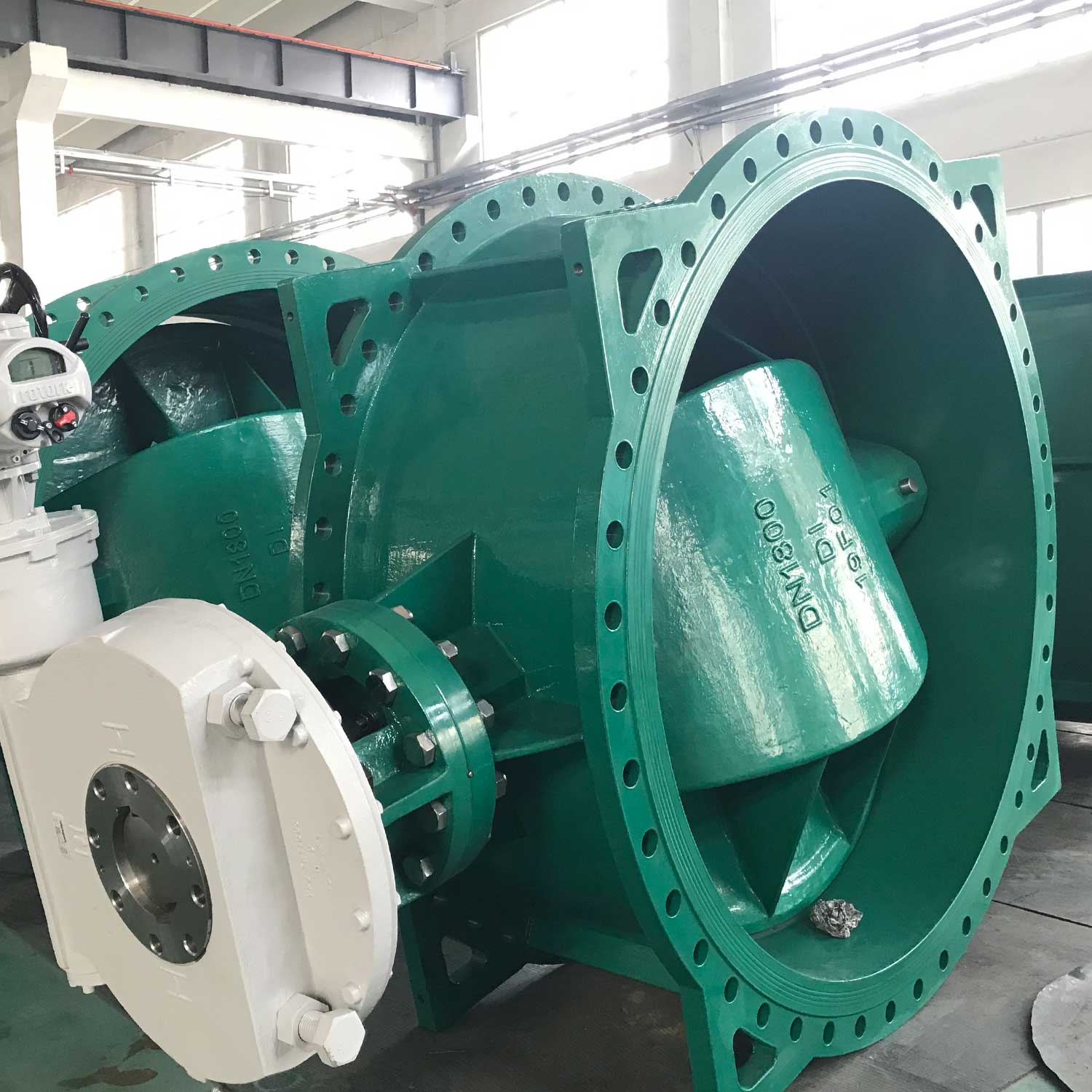

Double Offset Flange Type Butterfly Valves
| Size: | DN100-DN2600 |
|---|---|
| Actuator: | Bare Stem, Lever, Gear, Pneumatic, Electric |
| Painting: | FBE Coating, Liquid Painting（C3/C4/C5) |
| Approvals： | WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
| Design Standards: | DN593, AWWA C504, MSS SP-67 |
| Face to Face Standard: | EN558-1 |
| Flanges Standard: | EN1092 PN6/PN10/PN16/PN20, ANSI B16.1 CLASS125, JIS B2239&B2220 5K 10K 16K |
| Tests Standard: | EN12266-1, API598 |
| Top Flange: | ISO5211 |
| Body Material: | GGG40, GGG50, GGG40.3, WCB, 304, 316, Bronze |
| Disc Material: | DI Coated Niclon, C95400,C95800, Duplex,304, 316, Monel, Hastelloy, |
| Shaft Material: | 410, 420, 431, 17-4, 304, 316, 316L, Hastelloy, Duplex, Monel |
| Seat Material: | EPDM, NBR, VITON, PTFE, High Temperature EPDM, Hypalon, Silicone, Natural Rubber |
| Seat Type | Replaceable, Vulcanised |
