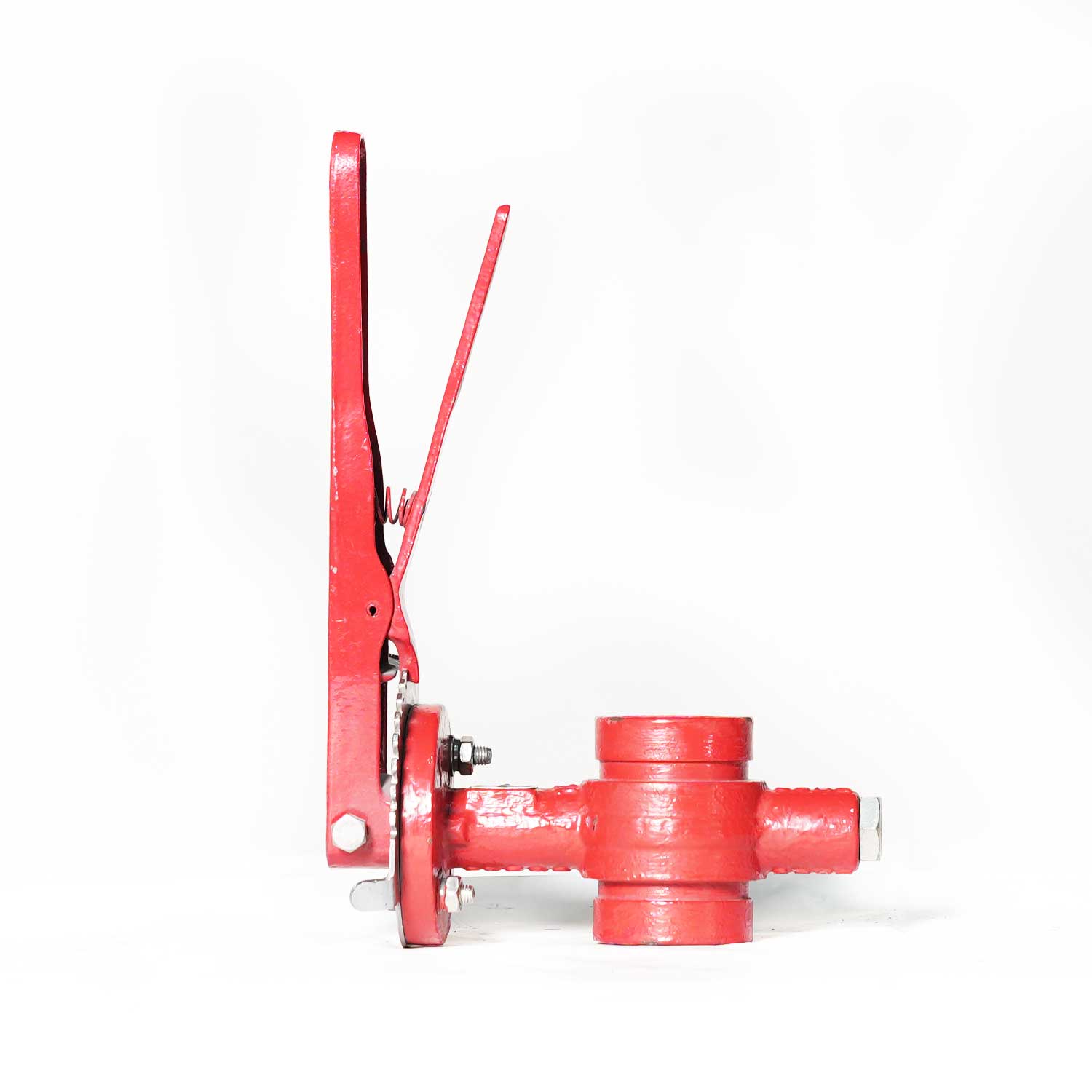

Grooved Type Butterfly Valves
| Size: | DN32-DN1000 |
|---|---|
| Actuator: | Bare Stem, Lever, Gear, Pneumatic, Electric |
| Painting: | FBE Coating, Liquid Painting（C3/C4/C5) |
| Approvals： | DNV-GL, BV, CCS, LR, ABS, NK,WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
| Design Standards: | MSS SP-67 |
| Face to Face Standard: | MSS SP-67 Table 4 |
| Grooved end standard: | ANSI/AWWA C606 |
| Tests Standard: | MSS SP-67, API598 |
| Top Flange: | ISO5211 |
| Body Material: | GGG40, GGG50 |
| Disc Material: | DI Coated EPDM, DI Coated NBR, DI Coated VITON |
| Shaft Material: | 410, 420, 431, 17-4, 304, 316, 316L, Hastelloy, Duplex, Monel |
