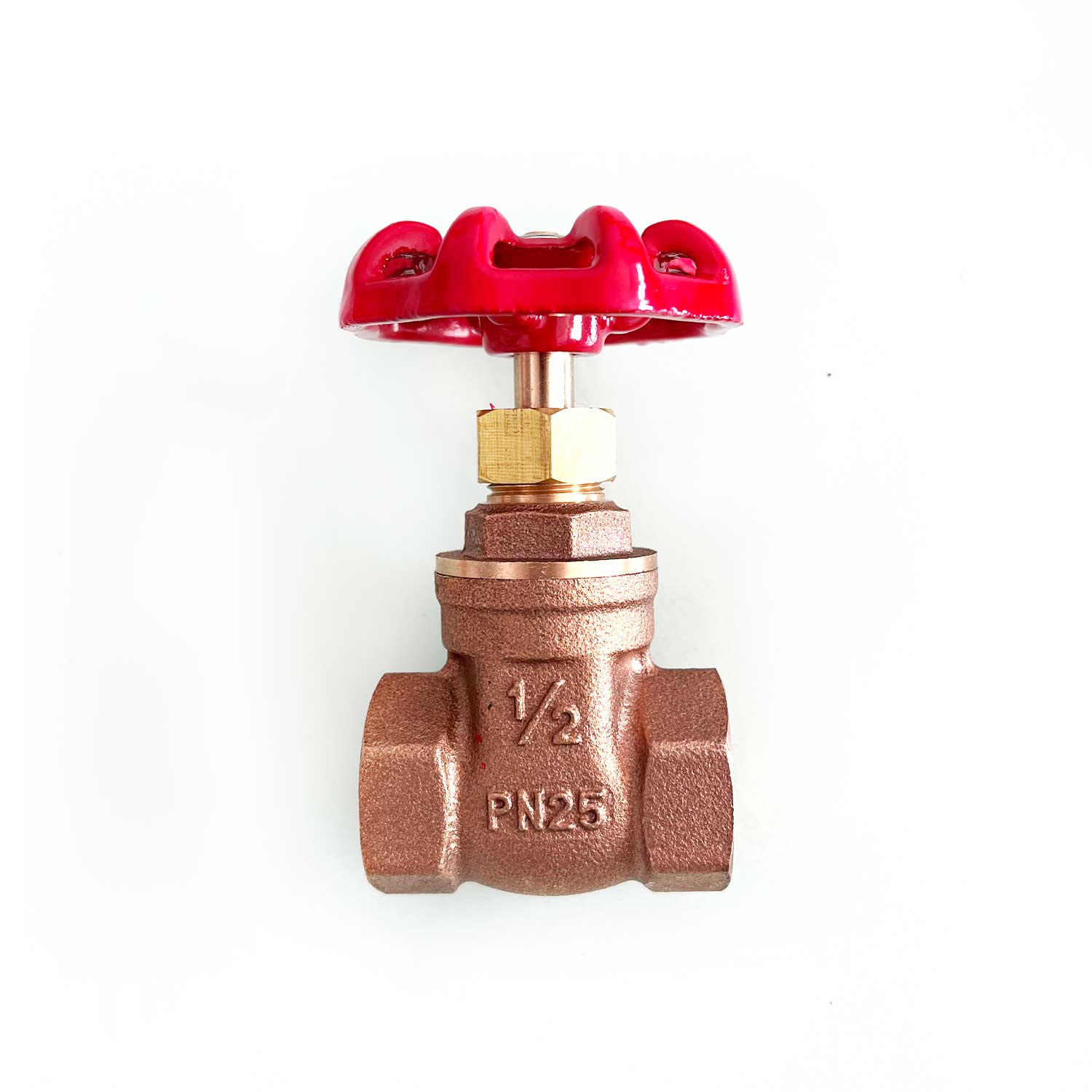

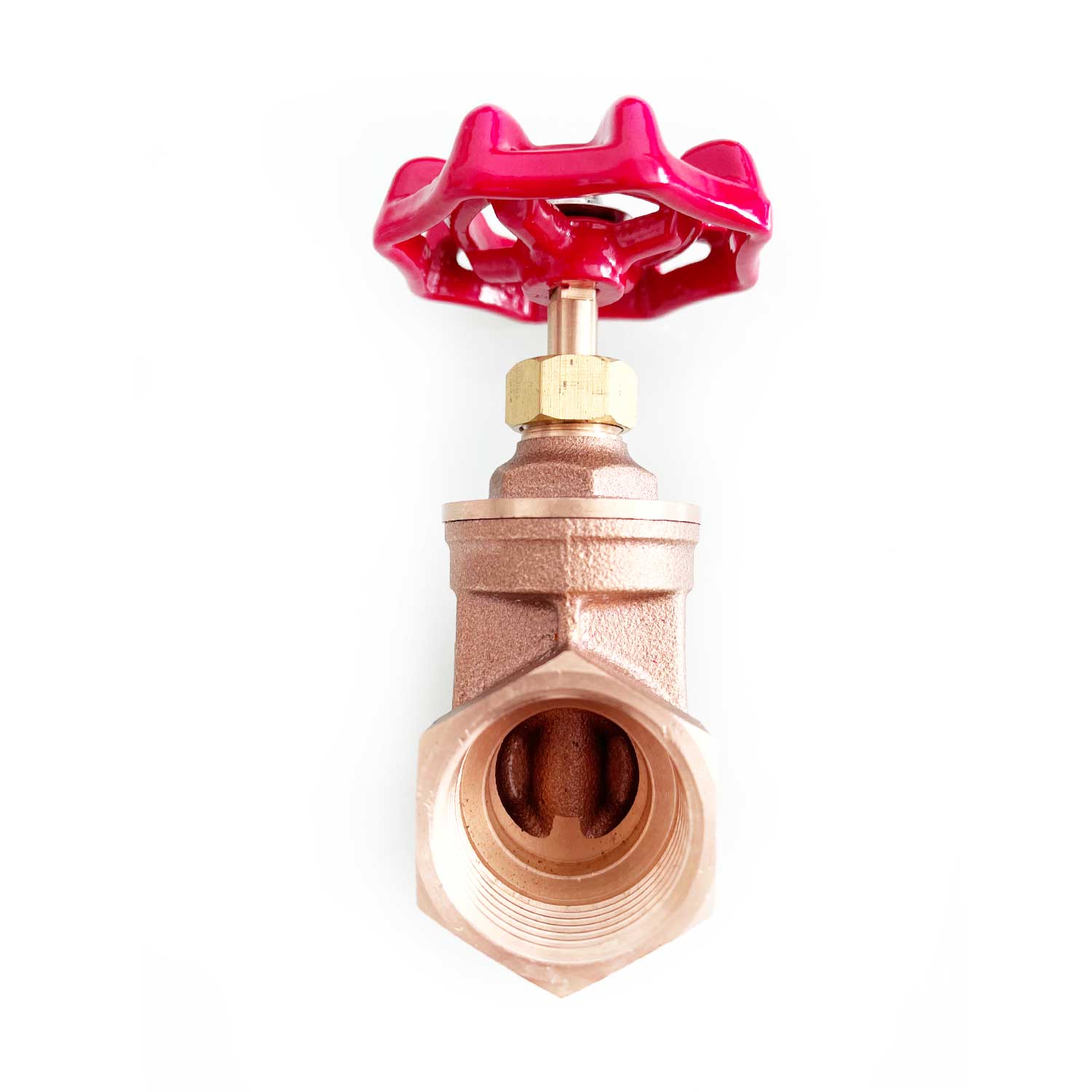

Threaed Bronze Gate Valves
| Size: | DN6-DN80 |
|---|---|
| Working Pressure: | PN16 PN25 |
| Design Standards: | DIN86720(DIN3552 T11) |
| Face to Face Standard: | EN558-1 Series 47(DIN3202 F19) |
| Thread Standard: | BSP OR NPT |
| Tests Standard: | EN12266-1 |
| Body Material: | Bronze(C83600), Brass(EN12164 CW 614N) |
| Stem Material: | Bronze(C83600), Brass(EN12164 CW 614N) |
| Seat Ring Material: | Bronze(C83600), Brass(EN12164 CW 614N) |
| Approvals： | DNV-GL, BV, CCS, LR, ABS, NK,WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
