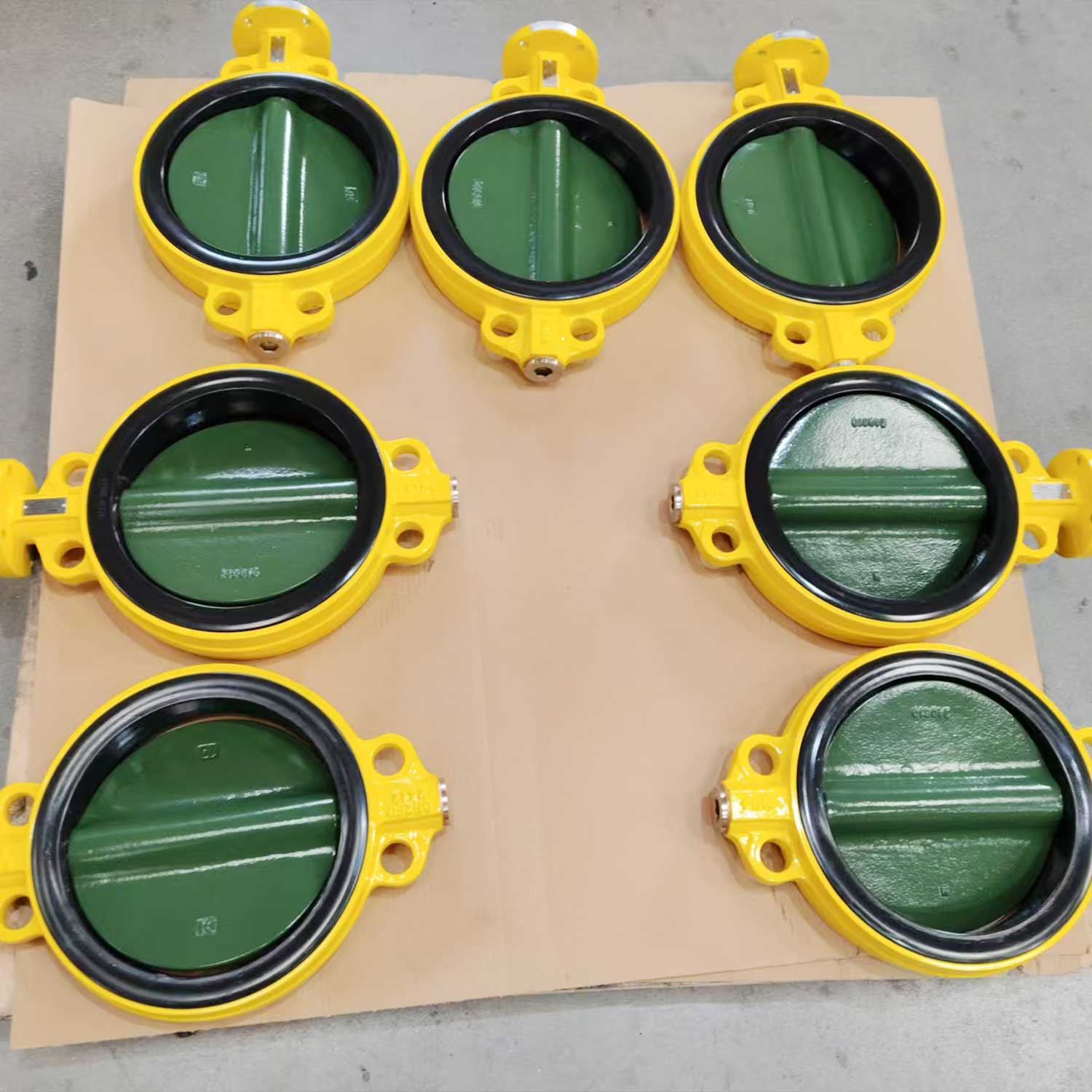

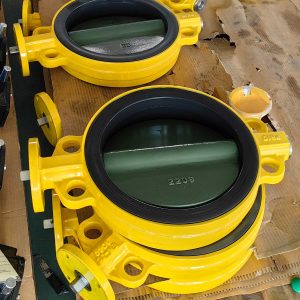

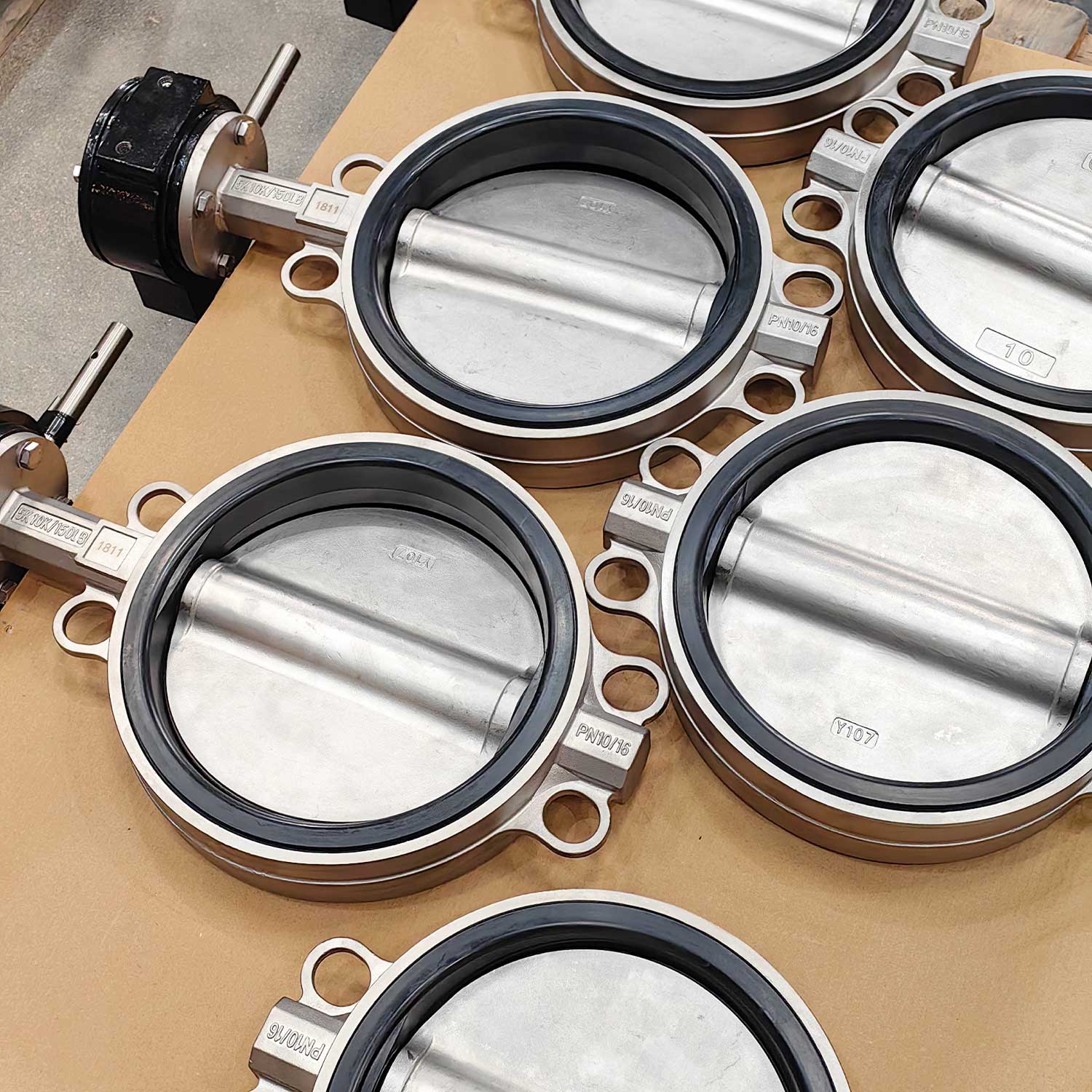

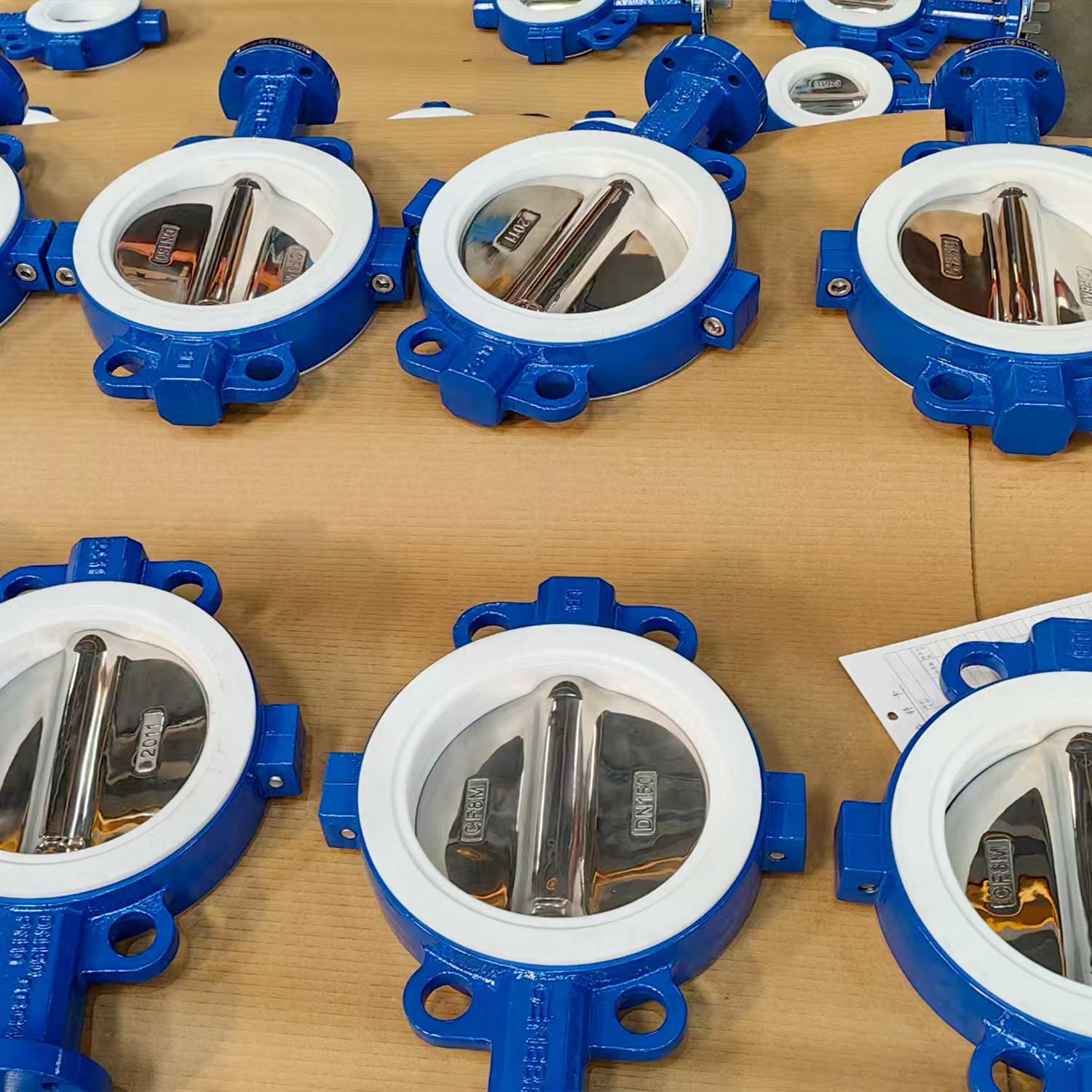

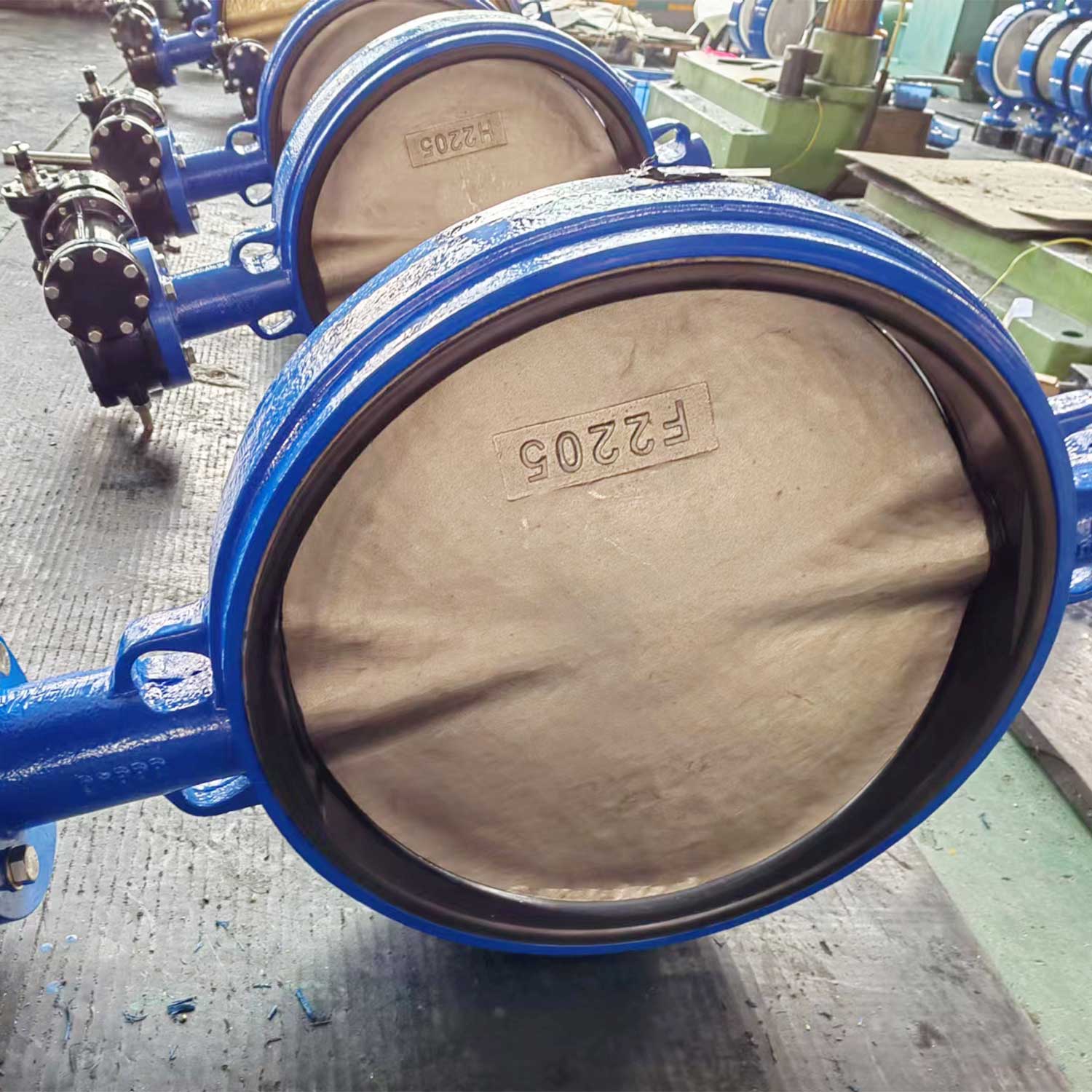

Wafer Type Butterfly Valves
| Size: | DN32-DN1000 |
|---|---|
| Actuator: | Bare Stem, Lever, Gear, Pneumatic, Electric |
| Painting: | FBE Coating, Liquid Painting（C3/C4/C5) |
| Approvals： | DNV-GL, BV, CCS, LR, ABS, NK,WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
| Design Standards: | DN593, API609 |
| Face to Face Standard: | EN558-1 |
| Flanges Standard: | EN1092 PN6/PN10/PN16/PN20, ANSI B16.1 CLASS125 |
| Tests Standard: | EN12266-1, API598 |
| Body Material: | GGG40, GGG50, GGG40.3, WCB, 304, 316, Bronze |
| Disc Material: | DI Coated Niclon, 304, 316, C95400, C95800, Monel, Hastelloy, Duplex |
| Shaft Material: | 410, 420, 431, 17-4, 304, 316, 316L, Hastelloy, Duplex, Monel |
| Seat Material: | EPDM, NBR, VITON, PTFE, High Temperature EPDM, Hypalon, Silicone, Natural Rubber |
