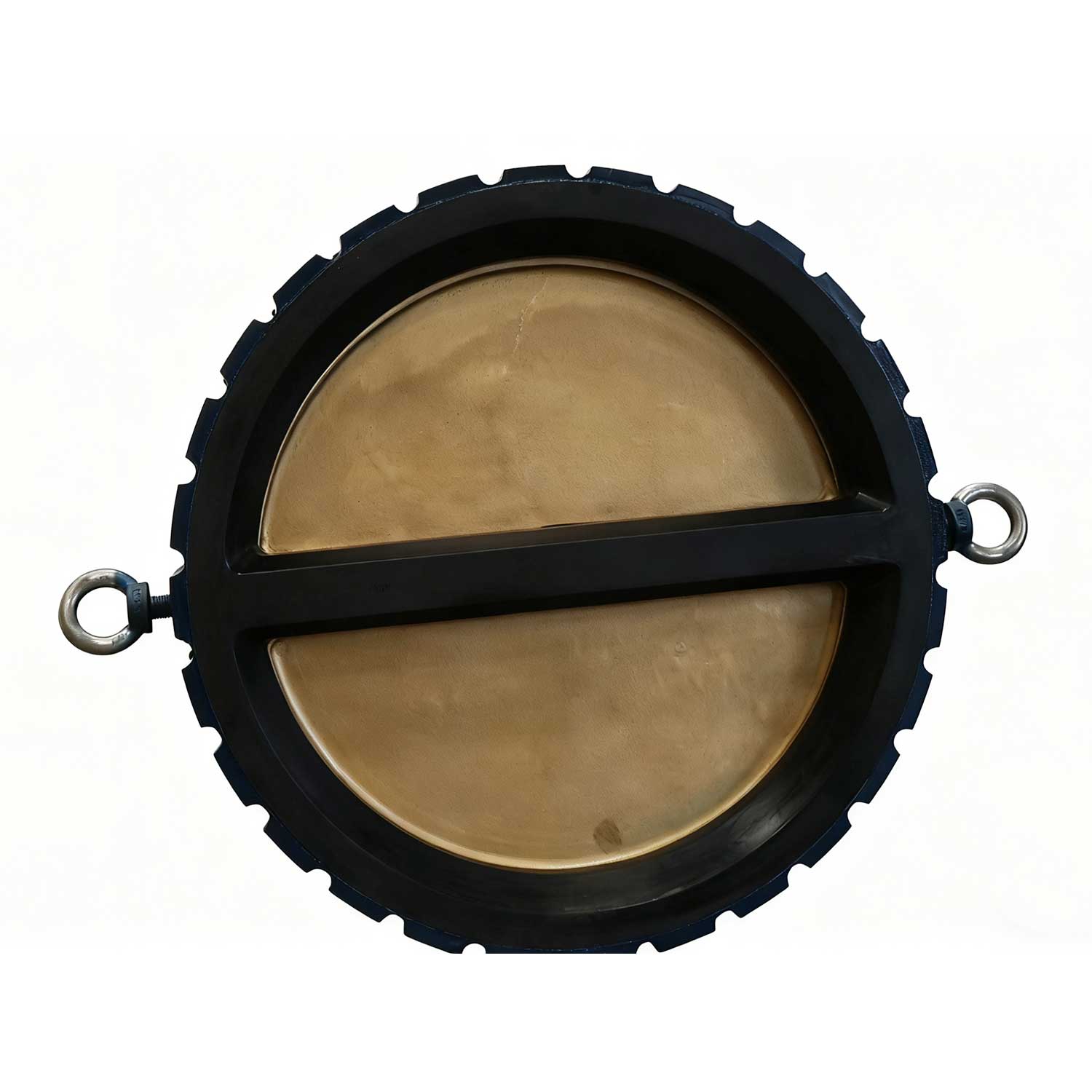

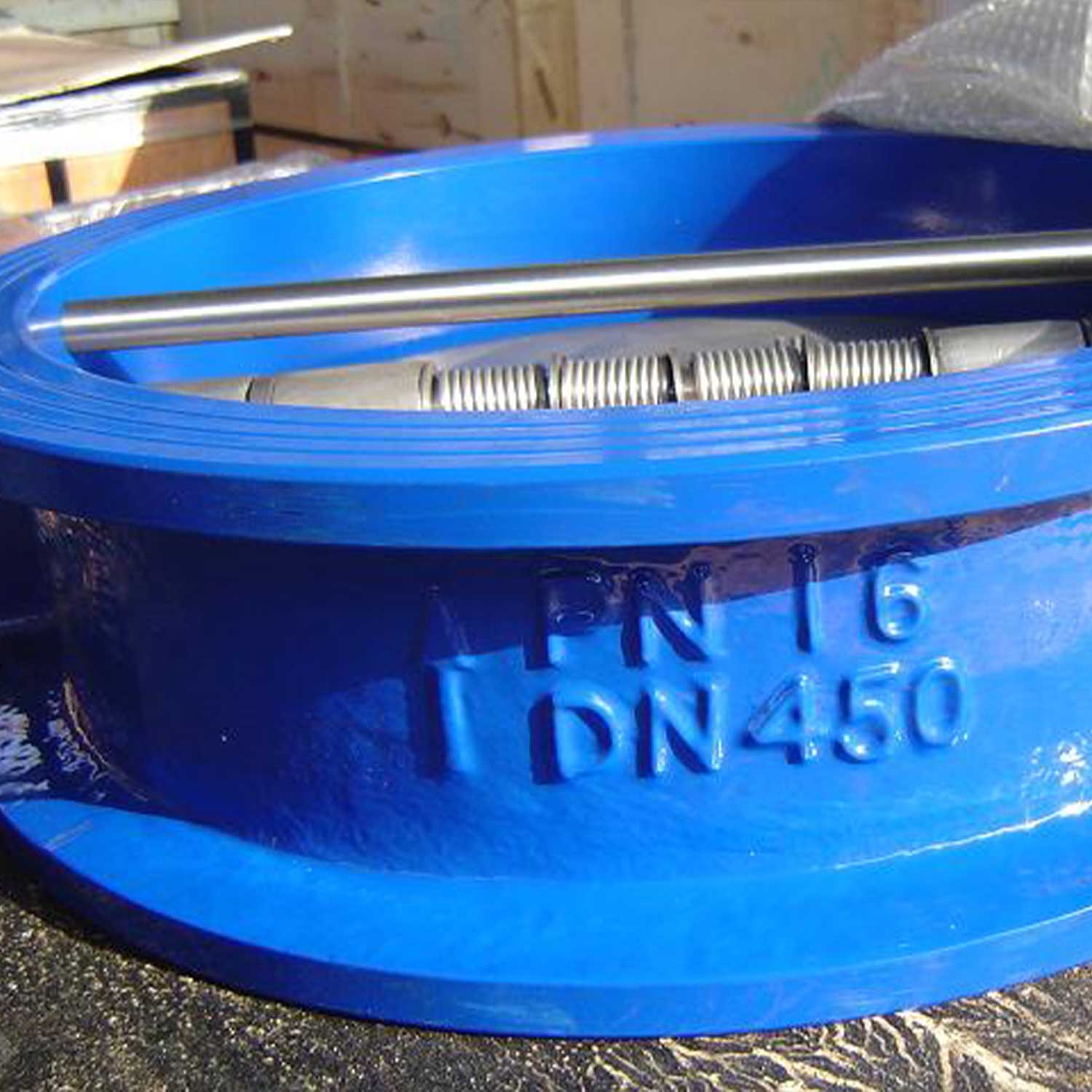

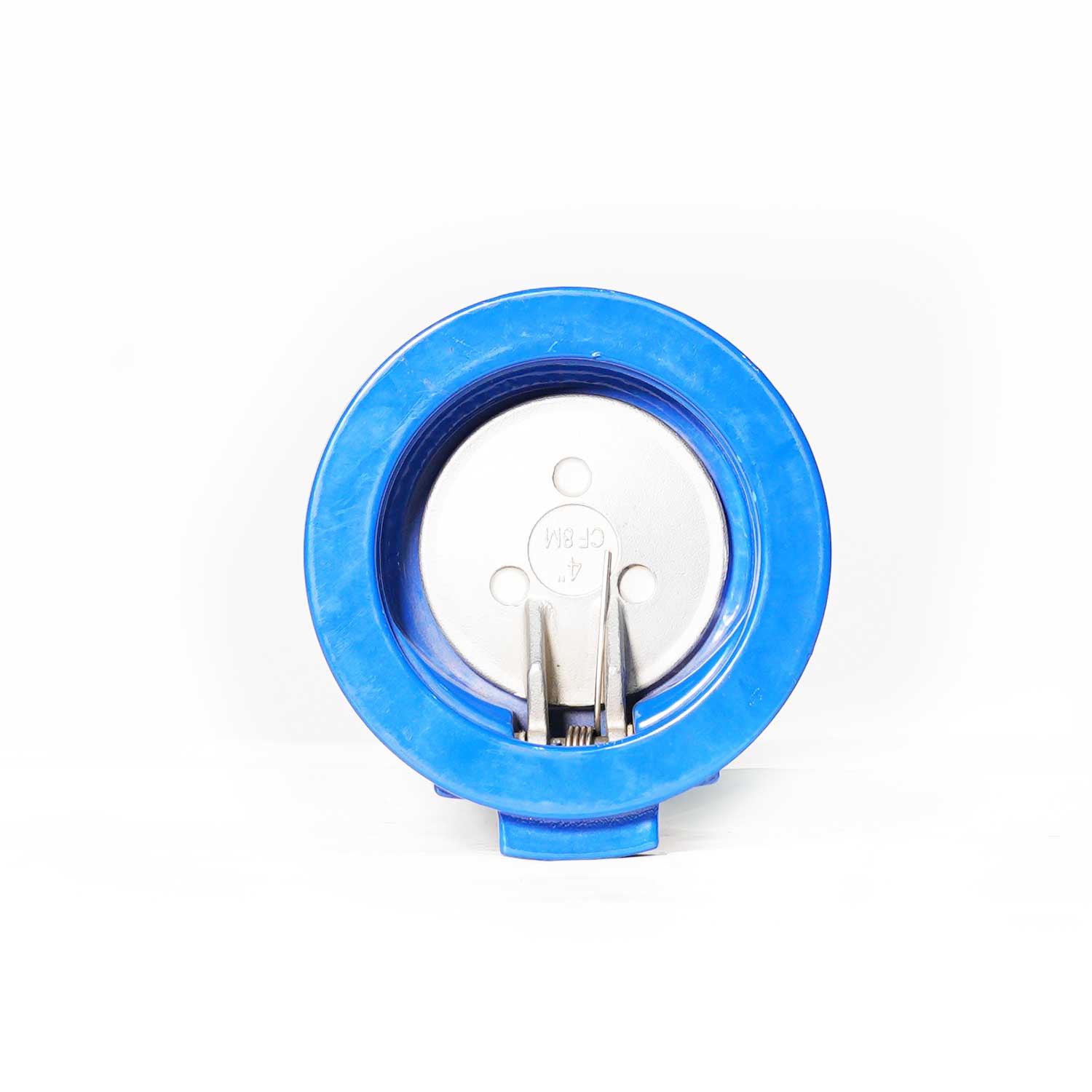

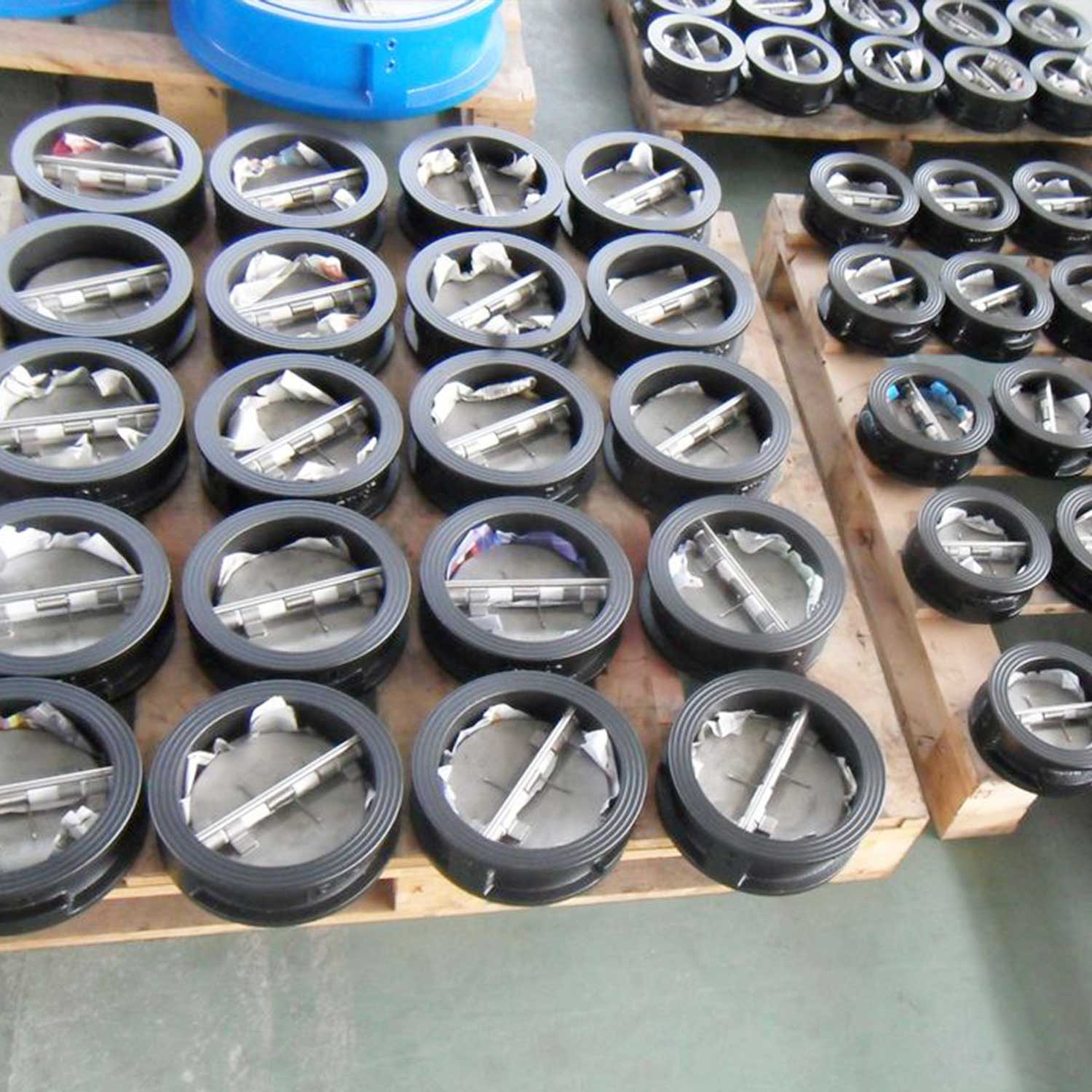

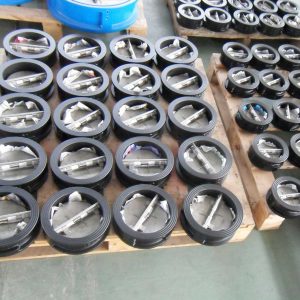

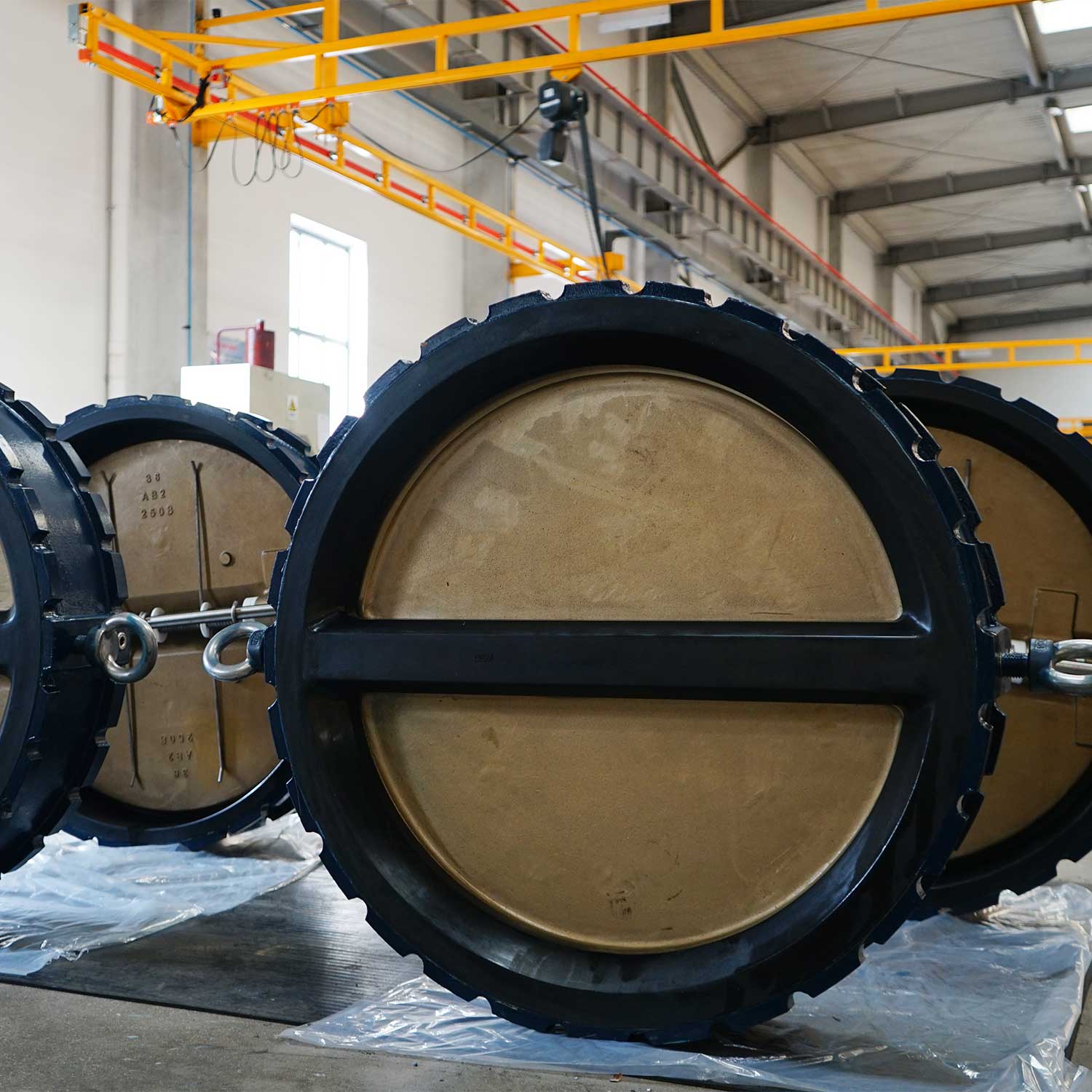

Wafer Type Check Valves
| Size: | DN50-DN600 |
|---|---|
| Working Pressure: | PN16 PN25 |
| Working Temp: | -20℃~120℃ |
| Design Standards: | EN12334 |
| Face to Face Standard: | EN558-1 List 16 |
| Flanges Standard: | EN1092 PN16,PN25, ASME B16.1 CLASS125 |
| Tests Standard: | EN12266-1, API598 |
| Body Material: | GGG50,304, 316 |
| Disc Material: | 304, 316, C95400,C95800 |
| Stem Material: | 416,431,304,316,17-4PH, Monel |
| Spring Material: | 304, 316, Inconel |
| Approvals： | DNV-GL, BV, CCS, LR, ABS, NK,WRAS |
| Foundry Approvals: | DNV-GL, BV, LR |
